ACCESSORIES FOR BOXES


ACCESSORIES FOR BOXES
ACCESSORIES FOR MODULAR BOXES

ACCESSORIES FOR BOXES





SM 60-03 EXTENSION PIECE
usage: for linking individual assembly-type boxes for switches or sockets at the standard 91mm centerline spacing; for vertical assembling of boxes (for switches in a frame boxes are simply joined together; individual switches require the addition of an extension piece) and for cross-linking of boxes (in combination with the SM 60-04 linking element)

material: PS VM
EAN: 3830022320018 (label on the bag)
packing: 100 pcs/3000 pcs





SM 60-04 LINKING ELEMENT
usage: for cross-linking of boxes at the standard 71mm centerline spacing for switches or sockets in a frame, if switches are separated, the SM 60-03 connection piece is inserted between the linking elements to provide for the standard 91mm centerline spacing
material: PS VM
EAN: 3830022320025 (label on the bag)
packing: 50 pcs/1000 pcs



SM 60-05 PROTECTIVE COVER
usage: for marking and protection of boxes against penetration of mortar during the application of roughcast
material: HDPE
EAN: 3830022320032 (label on the bag)
packing: 100 pcs/3200 pcs



SM 78-05 PROTECTIVE COVER
uporaba: for marking and protection of boxes against penetration of mortar during the application of roughcast
material: HDPE
EAN: 3830022320049 (label on the bag)
packing: 100 pcs/2500 pcs



SM 60 BOX COVER
usage: for decorative closing of the box; due to its rough surface is suitable for application of the wall paint; suitable for a Φ 60mm box; simple screwless mounting
material: PS VM
EAN: 3830022320056 (label on the bag)
packing: 50 pcs/2000 pcs

              750C



SM 78-80 BOX COVER
usage: for decorative closing of the box; due to its rough surface is suitable for application of the wall paint; suitable for a Φ 78-80mm box; simple screwless mounting

material: PS VM
EAN: 3830022320063 (label on the bag)
packing: 50 pcs/1500 pcs

             750C



ACCESSORIES FOR MODULAR PRODUCTS


PPM3 PROTECTIVE COVER
uporaba: for marking and protection of PM3 modular boxes against penetration of mortar during the application of roughcast
material: PP
EAN: 3830022321916 (label on the bag)
packing: 20 pcs/300 pcs



PPM4 PROTECTIVE COVER
uporaba: for marking and protection of PM4 modular boxes against penetration of mortar during the application of roughcast
material: PP
EAN: 3830022321923 (label on the bag)
packing: 20 pcs/240 pcs



PPM7 PROTECTIVE COVER
uporaba: for marking and protection of PM7 modular boxes against penetration of mortar during the application of roughcast
material: PP
EAN: 3830022321930 (label on the bag)
packing: 10 pcs/200 pcs



PM3/VM3 BOX COVER
usage: for decorative closing of the box; due to its rough surface is suitable for application of the wall paint; two screws enclosed; the PM3 or VM3 box with this cover may also be used as a distribution box
material: ABS/PC
EAN: 3830022321855 (label on the bag)
packing: 10 pcs/200 pcs

              750C



PM4/VM4 BOX COVER
usage: for decorative closing of the box; due to its rough surface is suitable for application of the wall paint; two screws enclosed; the PM4 or VM4 box with this cover may also be used as a distribution box
material:
ABS/PC
EAN: 3830022321787 (label on the bag)
packing: 10 pcs/100 pcs

              750C

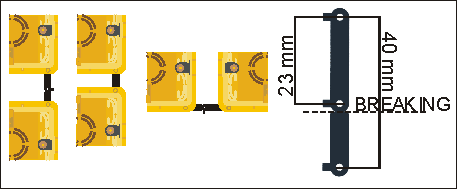

PM BOX LINKING ELEMENT
usage: for the spacing between flush-mounted modular boxes; two versions available: 40mm for cross-linking and vertical linking and 23mm (by simply beaking the linking element) for vertical linking only, if less spacing between switch frames is required; for cross-linking is used only the long version of the linking element
material: PS VM
EAN: 3830022321947 (label on the bag)
packing: 50 pcs
